Outlet & Device Locations
Map data and voice drops, endpoint locations, cable types, and identifiers to the floor plan.
Low-Voltage
Planned on Paper.
Built Right on Site.
Structured cabling, fiber, pathways, and organized equipment rooms. Kortech designs and installs the physical connections behind your business, from the first outlet location to the final test report.
✓ Copper & fiber✓ Design & installation✓ Testing & documentation
Low-VoltageMain equipment roomMDF & core connections
Floor / Area DistributionIDF, patch panels & cable management
Structured copper cabling
Work AreasData & voice outlets
Building SystemsAccess points, cameras & devices
Low-Voltage Tools & Brands
Design Before the Pull
A Plan for Every Drop, Pathway, and Rack.
Good cabling starts before installation. We review floor plans, walk the site, and coordinate with your team to identify device locations, cable routes, equipment rooms, and construction constraints.
The result is a defined installation scope that gives the field crew a clear plan and gives you a record of what is being built.
Pathways & Cable Routes
Plan support routes, risers, sleeves, and access requirements. Coordinate penetrations and trade responsibilities before work starts.
MDF / IDF & Rack Layouts
Lay out cabinets, patch panels, fiber enclosures, and cable management, with space for service access and future additions.
Scope & Installation Phases
Define drop counts, materials, test requirements, labeling, and handoff documents around your project schedule.

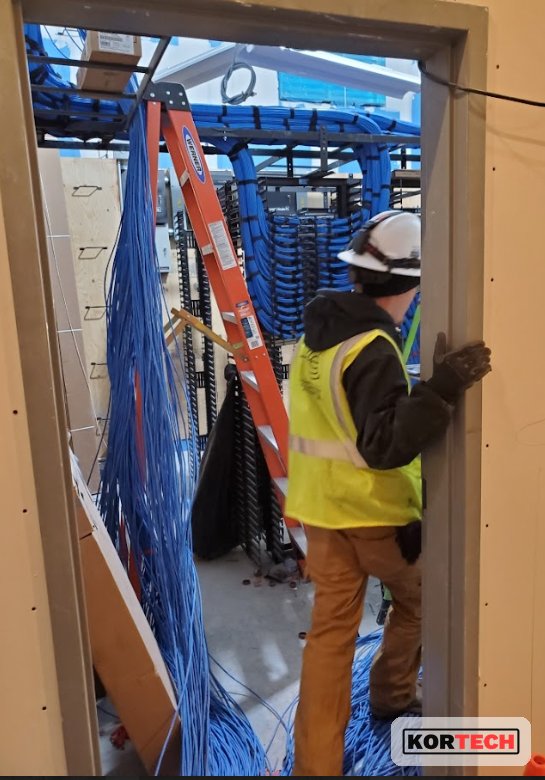

Low-Voltage Installation
The Details Behind a Clean Install.
New construction, occupied spaces, renovations, and additions. We plan the work around the building and the people using it.
Structured Copper Cabling
Cat6 and Cat6A data and voice runs, terminated at outlets and patch panels with consistent labeling at both ends.
Includes cable routing, termination, patch-panel organization, and test records.
Fiber Backbones
Single-mode and multimode fiber for risers, equipment-room connections, and building-to-building links.
Plan fiber type, strand count, termination locations, splice work, and testing for the project.
Pathways & Cable Support
Cable tray, ladder rack, and support systems that keep routes organized and accessible.
Coordinate pathway capacity, ceiling access, sleeves, and penetrations with the project team.

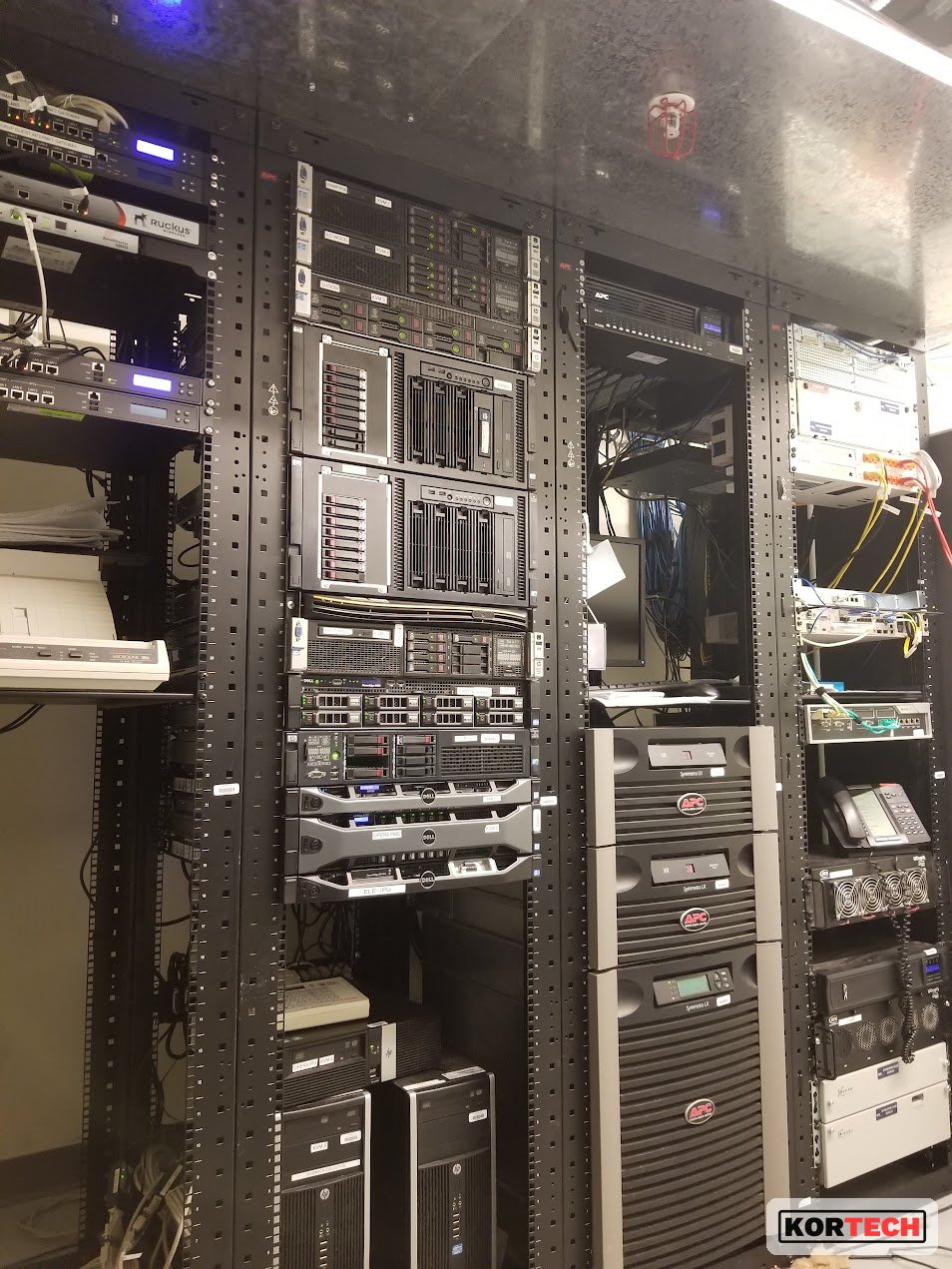

MDF / IDF Build-Outs
Racks, cabinets, patch panels, fiber enclosures, and horizontal and vertical cable management.
Use rack layouts and port assignments to keep equipment-room installations serviceable.
Device & System Cabling
Dedicated low-voltage runs for phones, access points, cameras, access-control equipment, AV, and paging.
Coordinate cable requirements and endpoint locations with the equipment and system design.
Cleanup & Remediation
Trace existing runs, resolve labeling gaps, re-terminate cabling, and reorganize congested racks.
Agree on outage windows and cutover sequencing before touching active connections.
Field Coordination
Build Around the Site. Keep the Work Organized.
We coordinate cable pulls, access to occupied areas, and equipment-room work with your facilities team, general contractor, and other trades.
- Before installation: confirm routes, materials, outlet locations, and access requirements.
- During installation: support and dress cable runs, identify connections, and track field changes.
- At cutover: sequence active connection changes around agreed work windows.
- At handoff: reconcile the finished installation with labels, drawings, and test records.
Testing & Documentation
A Test Result You Can Trace to the Cable.
We use Fluke Networks cable analyzers to document copper cabling performance against the project’s specified test requirements. Fiber testing is defined around the installed link and project scope.
Cable IDs should connect the outlet, patch panel, drawing, and test record. That makes it easier to locate a connection, review its results, and maintain the installation later.
Your Project Handoff
Deliverables defined in the installation scope:
- Cable and outlet identifiers
- Patch-panel and port schedules
- Copper certification and applicable fiber test records
- Updated floor plans and cable-route records
- Rack layouts and field-change notes
- Open-item review and installation walkthrough

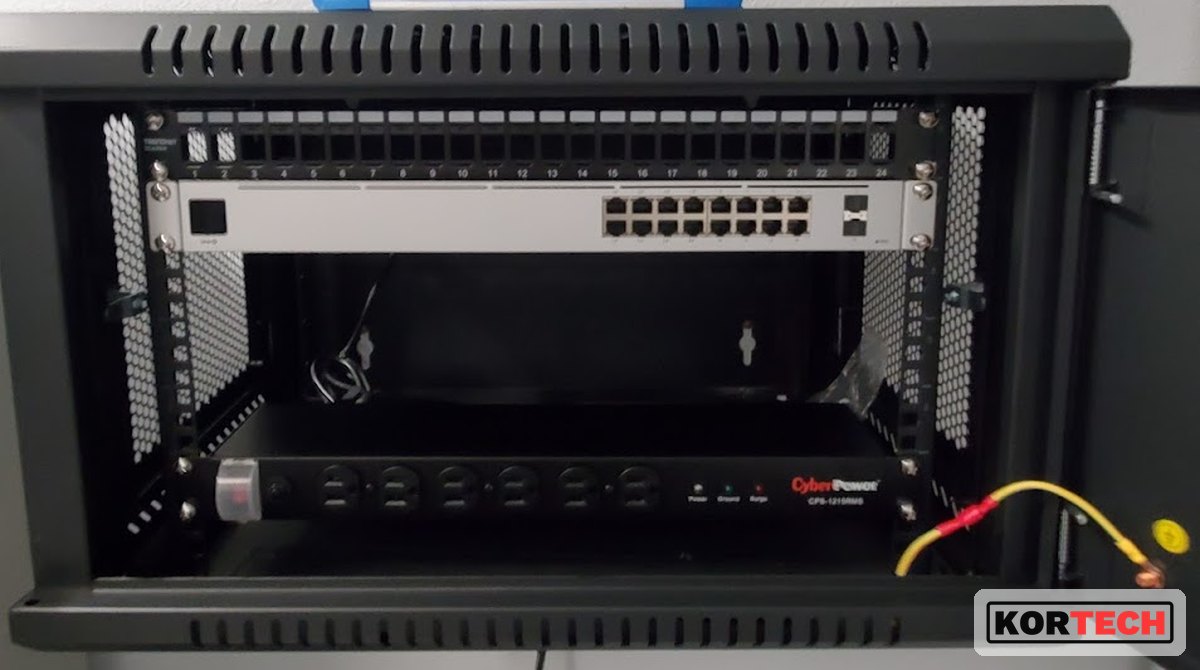

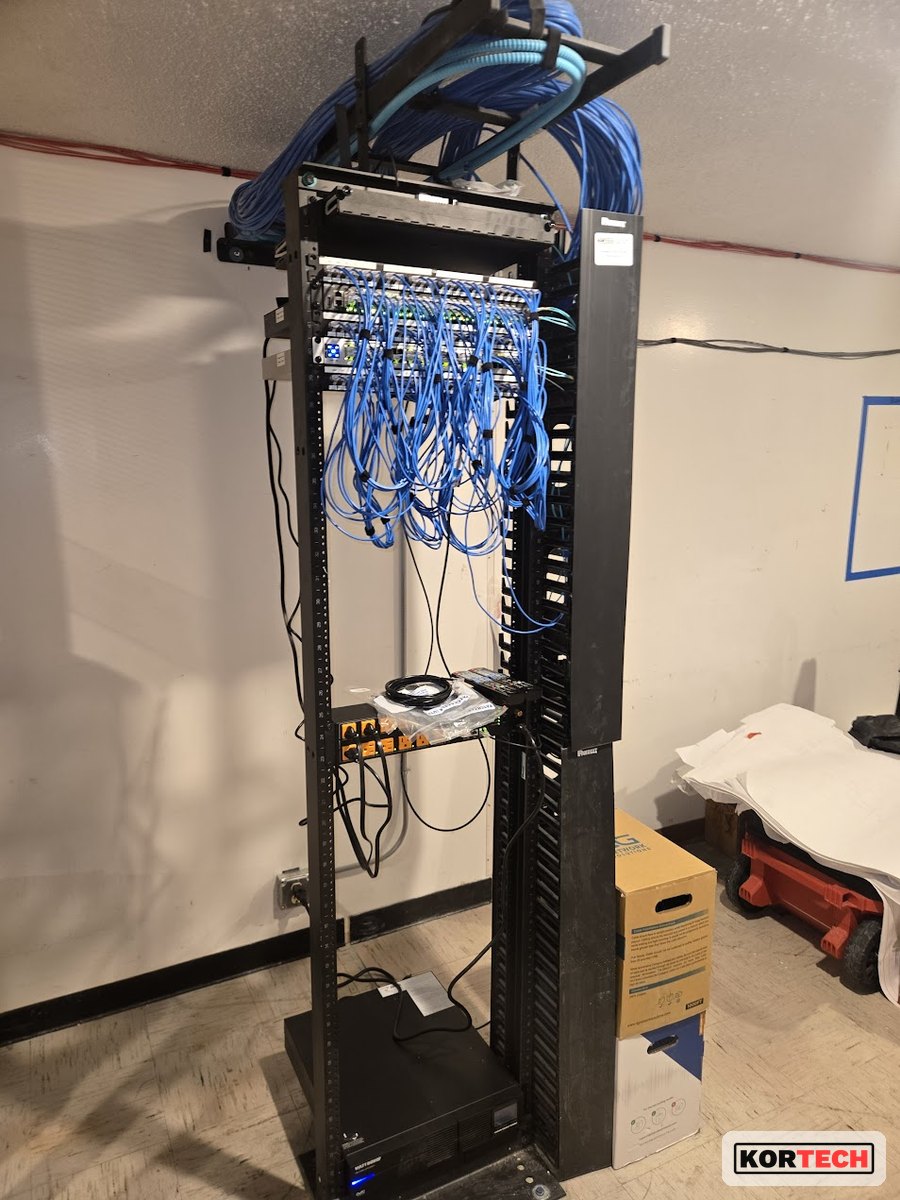

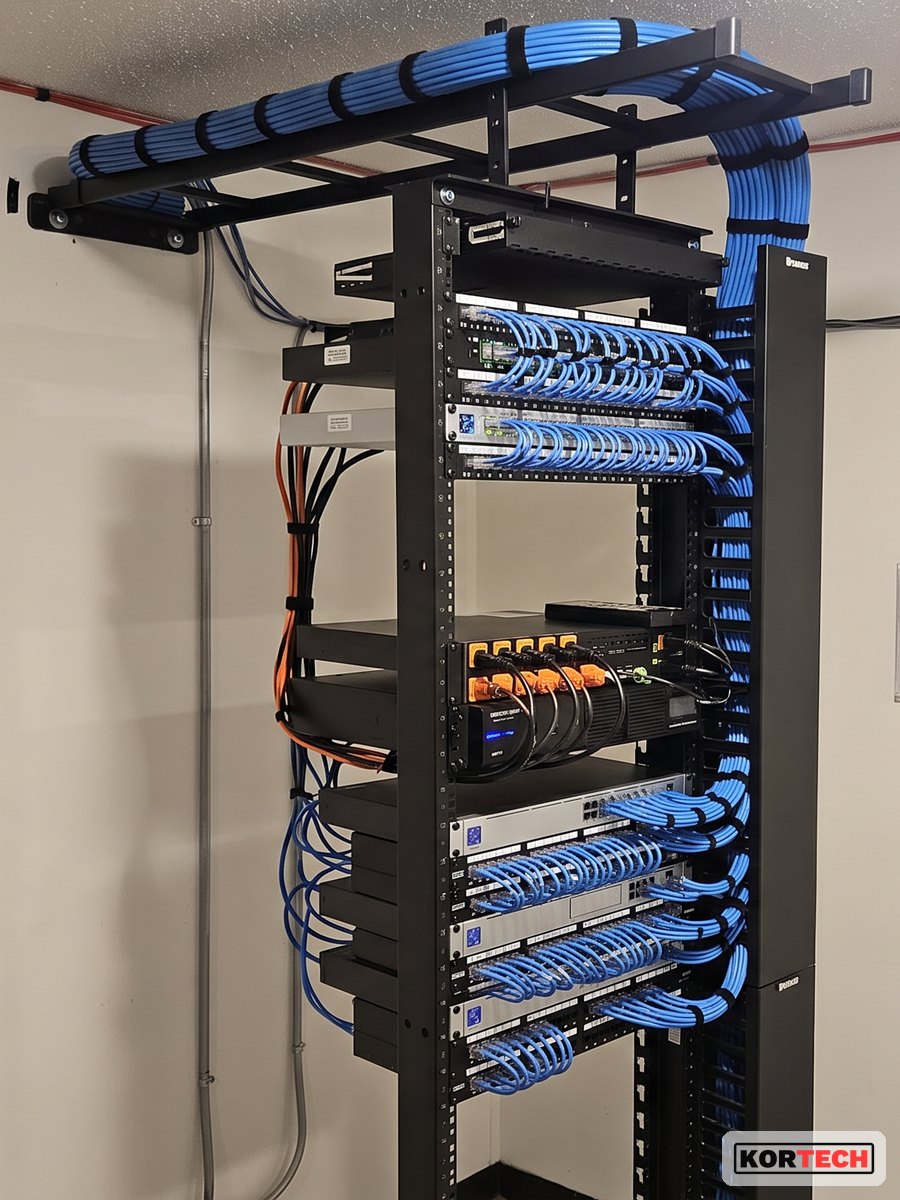

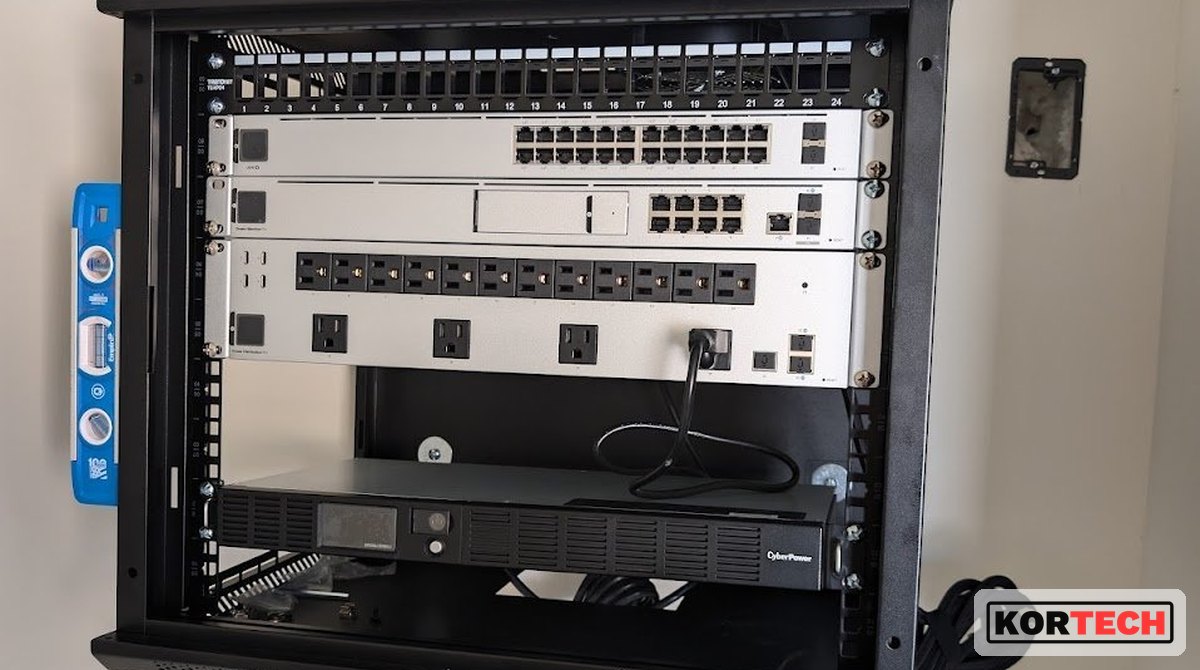

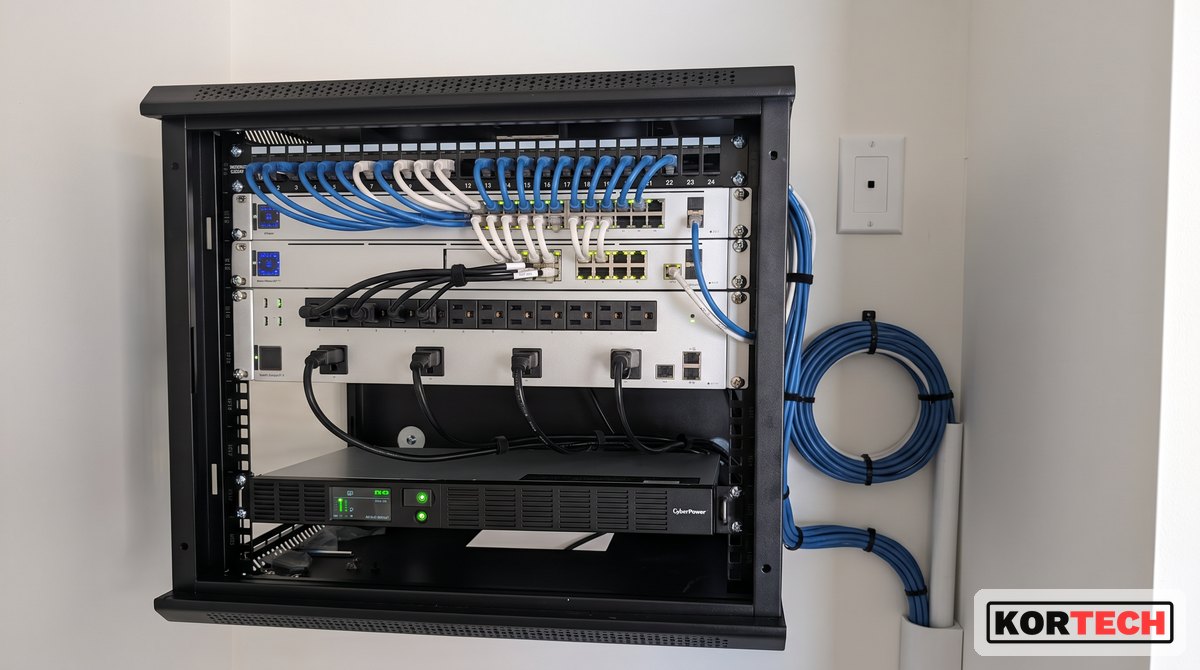

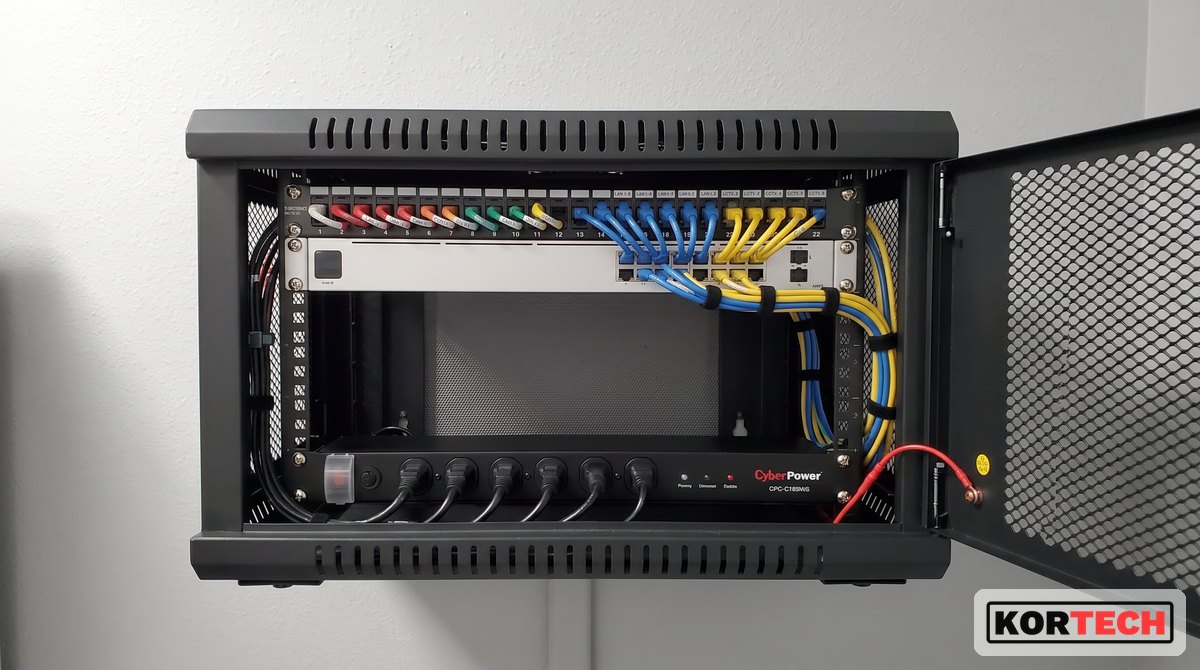

Before & after
See the Difference Clean Cabling Makes
Drag the slider, or use the arrow keys, to compare a rack before and after a Kortech cleanup and re-termination.
How We Work
From Site Walk to Documented Handoff.
1
Survey
Review floor plans, inspect existing conditions, and identify project requirements.
2
Design
Define outlet locations, cable routes, equipment-room layouts, materials, and scope.
3
Install
Pull, support, terminate, label, and dress the cabling to the agreed plan.
4
Test & Hand Off
Complete the agreed testing, reconcile field changes, and deliver project records.
Let’s Plan the Physical Layer
Bring Us Your Floor Plans.
We’ll Map Out the Cabling.
Tell us about the property, device locations, and project timeline. We will help define the design, installation, and handoff requirements.
Request a Site Assessment →
